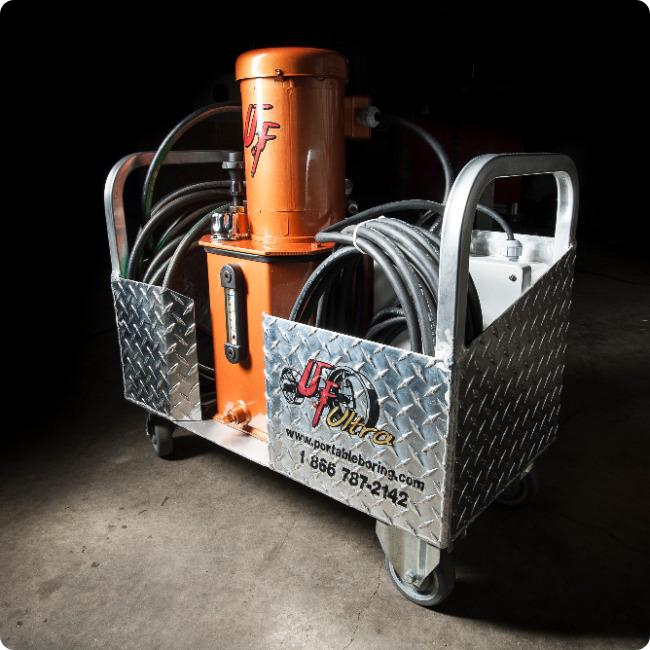

Compact and light at the same time, the 3 HP PU22 three-phase hydraulic power unit works with a three-phase power supply according to your requirements.
This reliable, easy-to-use, low maintenance hydraulic power unit comes standard with a high quality variable speed piston pump. It is a perfect match for rigorous work requiring high coupling power.
Its strong and light aluminum trolley makes it easy to move and allows you to hold hoses and cables during storage.
Dimensions | 28'' x 15'' x 30'' (H) (71.12 cm x 38.1 cm x 76.2 cm (H)) |
Weight | 115 lbs (56.7 Kg) |
Power supply | Three-phase: 400V, 50 Hz - 460V, 60Hz - 600V, 60Hz (other voltages on request) |
Power supply cables length | 25' (7.62m) |
Phase inverter | 3-position switch |
Maximum hydraulic pressure | 1 500 psi (103.42 bar) |
Oil tank capacity | 3 imp. gallons (13.64 L) |
Hose length | 15' (4.27m) |
Hydraulic control | Bidirectional, variable speed, hydrostatic system |
Electric power | 3 HP (2.24 Kw) |
Consumption | 5 Amp Max |
Maximum movement | 10 imp. gallons / min. (45.46 l / min.) |
Recommended oil | Hydraulic oil HVI 32 or HVI 46 |
