UF Pro 22

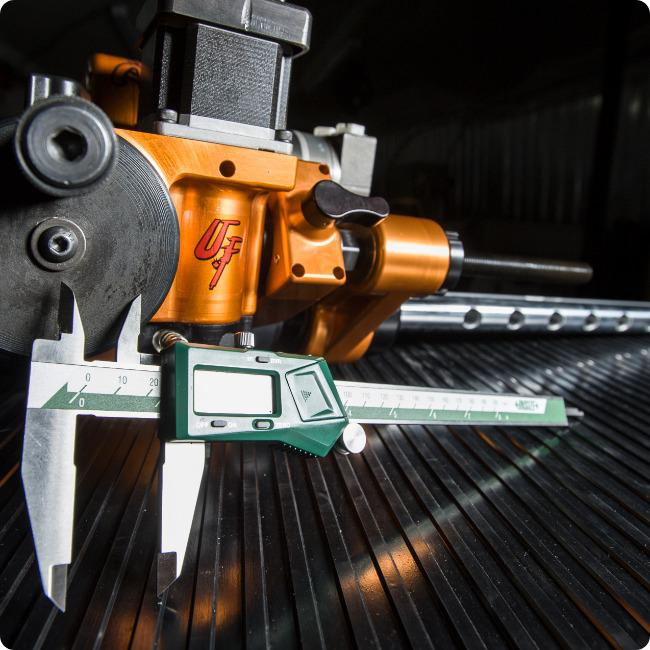

Proven on the field for several years, the PRO22 portable line boring machine is very compact. It is easy to install and allows work to be done in the most difficult to access areas that are often inaccessible to most other equipment suppliers. Weighing only 30 pounds (13.6 kg), no lifting equipment is required for installation, limiting the operator’s physical efforts.

The PRO22 portable boring machine is offered with a choice of 120/240 volt hydraulic units, either single-phase for increased versatility for field work, or three-phase for rigorous work requiring maximum power. (At buyer’s choice)

It is also designed to receive our patented quick attach bar system for jobs up to 12 inches (305mm) in diameter. It only takes minutes to install the shaft reduction kits also offered for increased versatility.

MAIN CHARACTERISTICS:

  • Machining and reloading capacity: 1,250 - 12 inches (metric)
  • Bidirectional mechanical automatic feed: 0.004"/rev
  • Maximum coupling at the bar: 900 lbs/in (101,7Nm)
  • Power: single-phase or three-phase hydraulic
  • Optional transport and storage case

Diameter of the cutting shaft 1’’ , 1 1/4'', 1 9/16’’ (25.4 mm ,34,8 mm, 39.7 mm)
Welding diameter 1.125’’ to 12’’ (28,6 mm - 304,8 mm)
Bore diameter 12'' (304,8 mm)
Continuous feed, standard feed screw 7'' (177,8 mm)
Mechanical automatic feedrate 0,004'' /rev
Coupling at the bar 900l lb/in (101,7 Nm)
Rotation speed Variable up to 762 rpm
Weight of the boring machine 30 lbs (13,6 Kg)
