Digital facing head

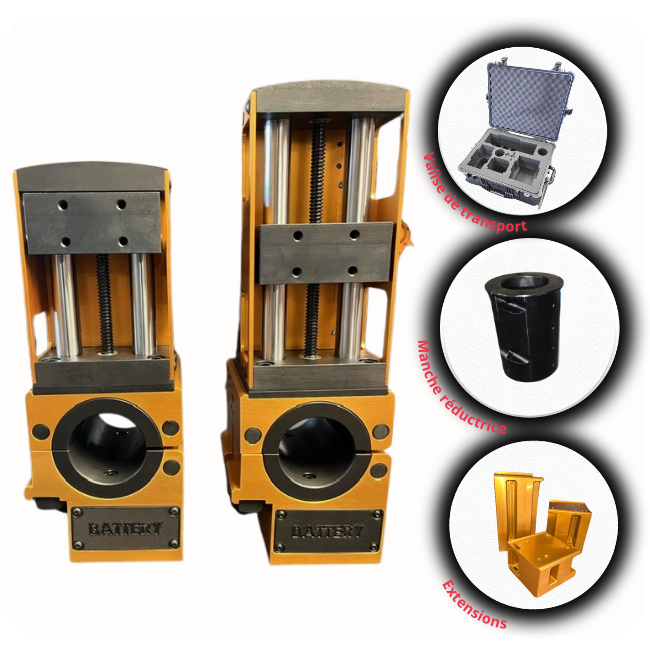

The UF Standard facing head is specifically designed for use in tight spaces where the minimum space between equipment parts can be as little as 3 1/4’’. This facing head represents an important competitive advantage.

Easy to install and use, this state-of-the-art equipment will provide you with exceptional reliability and versatility. Powered by lithium-ion batteries, this facing head offers unparalleled power and hours of continuous operation. The UF Standard facing head can be configured in several slide lengths: 2", 3" and 5". Controlled by the Basic remote control (BRC) and/or the wireless touch remote control (WTRC), this facing head offers you advanced features such as programmed feeds with return to home position and end limit. In order to adapt to the diameter of the work to be carried out, the latter can be configured in a few minutes by adding or removing an extension.

Being installed on the same drive, it can be used with all head lengths, making it a unique equipment on the market.

(Extensions and carrying case available as an option.)

FEATURES

  • Installs at each location where there is a hole for the cutting tool
  • Fast switching of the slide system to change the required range
  • Full surface anti-wear and anti-rust treatment
  • Can be used with the basic remote control (BRC) and the wireless touch remote control (WTRC) (compatible with Ultra series boring machines)
  • Allows coupling of the motorization between the driving part and the driven part when positioned around the holes normally used for the cutting tool on the shaft of the boring machine.





Speed range Variable up to 1.4"/min (35,56 mm/min)
Motorization High torque servo-motor .09Kw/0.122Hp
Autonomy 6 hours of continuous operation
Managing speed and positions With the remote control
Minimum width required for installation 3.750" (95.25mm)
Standard collars diameter 1.562" (39.67mm) and 2" (50.8mm)
Other collar diameters on request Between 1.5" (38.1mm) and 2.25" (57.15mm)

Slide 2" (50.8mm) 3" (76.2mm) 5" (127mm)
Facing diameter range 3" (76.2mm) to 16" (406.4mm) 3" (76.2mm) to 20" (508mm) 3" (76.2mm) to 24" (609.6mm)
Minimum diameter for free rotation of the tool 11.5" (292.1mm) 13.5" (342.9mm) 15.5" (393.7mm)
