Power and control unit
-D2BB03F6-FFEB-AEBE-6318D2D0E83EB7D6.png)
The Ultra series power and control unit offered by Usinage Filiatrault offers high performance features. Thanks to our wireless technology compatible with all the line boring machines of the Ultra series, you will be able to carry out your machining and remote welding operations.
This high-performance power unit features a 15hp motor powered by a high-quality piston pump that offers constant power and speed unmatched in the industry.
Combined with the servo motors of the Ultra series line boring machines and the wireless or wired remote control, this power unit will offer you performance, reliability and satisfaction for the most rigorous work.

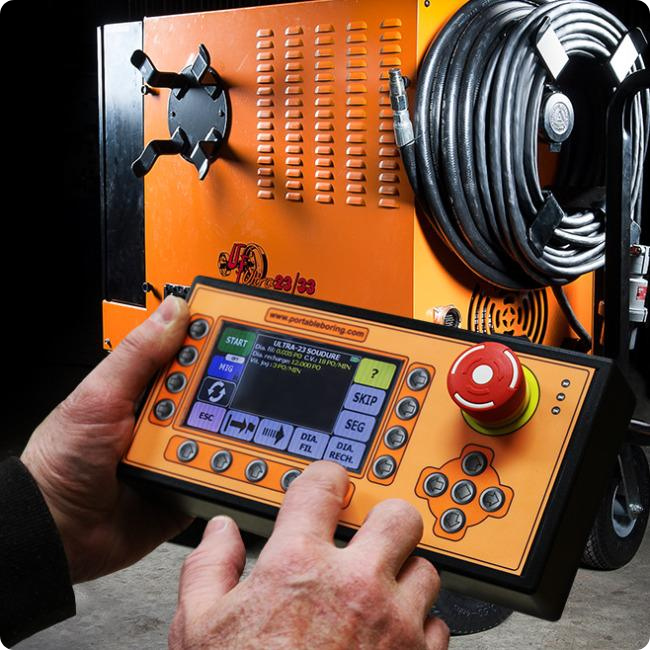

WIRELESS TOUCH REMOTE CONTROL
Usinage Filiatrault is proud to present its unique wireless touch remote control in the portable machine tool market. This remote control has an intuitive interface and can control the full range of the Ultra series, as well as the range of telescopic and standard digital facing heads with unprecedented precision and advanced features.
This state-of-the-art remote control has been specially developed to offer operators a level of comfort, safety and unparalleled performance. This remote control allows the user to control the operations of their equipment remotely and safely, without the disadvantages and obstruction caused by wired remote controls. See the details of this remote control.
WIRED TOUCH REMOTE CONTROL
Usinage Filiatrault is proud to present its wired touch remote control with a unique touch screen in the portable machine tool market. This remote has an intuitive interface and can control the full range of the Ultra series.
This remote control has been specially developed to offer operators a level of comfort, safety and incomparable performance. This remote control allows the user to control the operations of their equipment remotely in complete safety, ensuring reliability and efficiency. It has been tested for many years in the most hostile working environments. See the details of this remote control.
OPTIONAL MOTORIZED TROLLEY
For users who need to move their portable machining equipment frequently, the power unit is available with an internally powered optional motorized trolley. This trolley allows you to effortlessly move the power and control unit on the various uneven surfaces that are found during field work. See the details of this trolley.
THREE PHASE FEMALE RECEPTACLE
Limited in three-phase connection on the field or in your workshop? Connect your welder directly to the power and control unit for your reloading tasks. See the details of the ADR-6034 three-phase receptacle.
THREE PHASE MALE CONNECTOR
See the details of the three-phase ACP-6034-BC male connector.
| Dimensions | 20'' x 37'' x 48'' (50.8 cm x 94 cm x 122 cm) |
| Bare weight | 675lbs (306.17 kg) |
| Power supply | Three phase, 400V 50Hz, 460V 60Hz, 600V 60Hz |
| Power supply cables length | 50' (7.62 m) |
| Power monitor | Automatic phase inversion, phase loss detection, low voltage and overvoltage detection |
| Maximum hydraulic pressure | 2 250 psi (155.13 bar) |
| Oil cooler | High performance, powered by the three-phase motor |
| Oil tank capacity | 12 US gallons (45.46 L) |
| Welder accessory outlet | 1 |
| Hose length | 25' (7.62 m) |
| Hydraulic control | Bidirectional, variable speed, hydrostatic system |
| Hydraulic power | 15.0 HP (11.19 kW) continuous duty - 30.0 HP (22.37) kW intermittent duty |
| Volumetric movement | Variable up to 30 US gallons / min. (113.65 l / min.) |
| Remote control dimensions | Height: 3.5'' (8.89 cm) Width: 5.75'' (14.6 cm) Thickness: 9.5'' (24.13 cm) |
