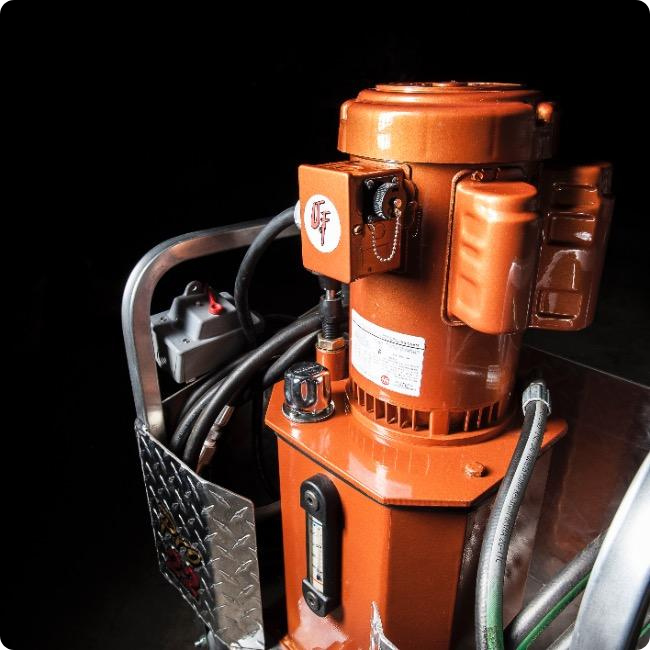

Compact and light at the same time, the 1.5 HP PU22 single-phase hydraulic power unit can operate with 120 volts and 240 volts power supplies.
This reliable, easy-to-use, low maintenance hydraulic power unit comes standard with a high quality variable speed piston pump. It is a perfect match for field work where three-phase power is not available.
Its strong and lightweight aluminum trolley makes it easy to move and allows you to hold hoses and cables during storage.
Dimensions | 22" x 15" x 30" (H) (55.88 cm x 38.1 cm x 76.2 cm (H)) | 22" x 15" x 30" (H) (55.88 cm x 38.1 cm x 76.2 cm (H)) |
Weight | 100 lbs (45.36 kg) | 100 lbs (45.36 kg) |
Power supply | 120V and 240V, 50HZ/60Hz | 240V, 50Hz/60Hz |
Power supply cables with plug included | 120V and 240V | 240V |
Power supply cables length | 15' (4.27 m) | 15' (4.27 m) |
Maximum hydraulic pressure | 1 500 psi (103.42 bar) | 1 500 psi (103.42 bar) |
Oil tank capacity | 3 imp. gallons (13.64 L) | 3 imp. gallons (13.64 L) |
Hose length | 15' (4.27 m) | 15' (4.27 m) |
Hydraulic control | Bidirectional, variable speed, hydrostatic system, bidirectional, variable speed, hydrostatic system | |
Electric power | 1.5 HP - 1.12 kW | 3 HP - 2.24 kW |
Consumption | 20 Amp. Max. @ 120V, 10 Amp. Max. @ 240V | 17 Amp. Max. |
Maximum movement | 5 imp. gallons / min. (22.73 L / min.) | 10 imp. gallons / min. (45.46 L / min.) |
Recommended oil | Hydraulic oil HVI 31 or HVI 46 | Hydraulic oil HVI 31 or HVI 46 |
